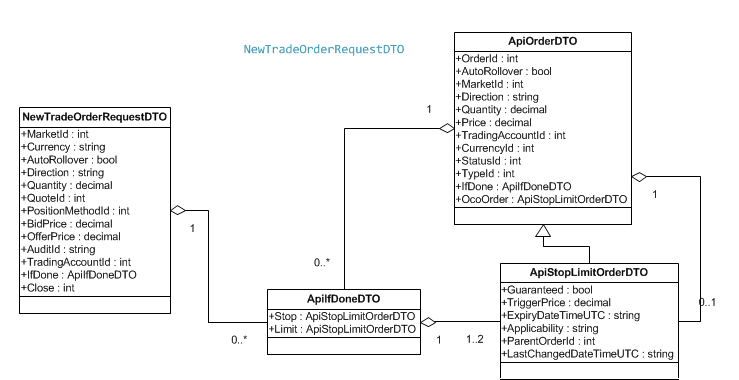

NewTradeOrderRequestDTO Class Diagram

The NewTradeOrderRequestDTO is used to place a new trade on a market. The following is the UML class diagram for this process.

The corresponding response is ApiTradeOrderResponseDTO and its class diagram is shown in ApiTradeOrderResponseDTO Class Diagram.

Last updated: 23 July 2024
